I. Summary
Multi-stage centrifugal blower produced by our company is widely used in smelting furnace, coal washery, mine floating, sewage treatment, chemical gas-making and other occasions where the air delivery is required, it can also be used in the delivery of other non -corrosive gases. The dust and hard particle content should be lower than 150mm/m3. This blower series has the advantages such as high efficiency, low noise, steady operation, few quick-wear parts and easy to install, operation and maintain, etc.

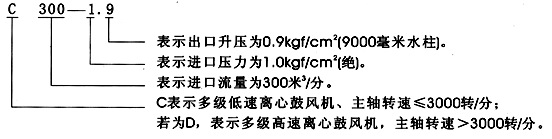

Model description：
II. Performance parameter list (detail)
|
Model |
Transmission medium
|
Inlet condition
|
Outlet pressure boost
mmH20 |
Shaft power
KW |
Rotate speed
r/min |
Auxiliary motor Power
|
|||
|
Flow
m3/min |
Pressure
kgf /cm2 |
Temperature
℃ |
Density
kg/ m3 |
||||||
|
C80-1.35 |
Air
|
80
|
1
|
20
|
1.2
|
3500
|
59.2
|
2970
|
Y280S-2-75KW |
|
C80-1.5 |
Air
|
80
|
1
|
20
|
1.2
|
5000
|
82.8
|
2980
|
Y315S-2-110KW |
|
C80-1.7 |
Air
|
80
|
1
|
20
|
1.2
|
7000
|
110.4
|
2980
|
Y315M-2-132 KW |
|
C90-1.35 |
Air
|
90
|
1
|
20
|
1.2
|
3500
|
66.6
|
2970
|
Y280S-2-75 KW |
|
C90-1.5 |
Air
|
90
|
1
|
20
|
1.2
|
5000
|
92.5
|
2980
|
Y315S-2-110 KW |
|
C90-1.7 |
Air
|
90
|
1
|
20
|
1.2
|
7000
|
124.7
|
2980
|
Y315L1-2-160 KW |
|
C100-1.35 |
Air
|
100
|
1
|
20
|
1.2
|
3500
|
74.5
|
2970
|
Y280M-2-90 KW |
|
C100-1.5 |
Air
|
100
|
1
|
20
|
1.2
|
5000
|
102.4
|
2980
|
Y315S-2-110 KW |
|
C100-1.7 |
Air
|
100
|
1
|
20
|
1.2
|
7000
|
137.5
|
2980
|
Y315L1-2-160 KW |
|
C110-1.35 |
Air
|
110
|
1
|
20
|
1.2
|
3500
|
81.7
|
2970
|
Y280M-2-90 KW |
|
C110-1.5 |
Air
|
110
|
1
|
20
|
1.2
|
5000
|
116.7
|
2980
|
Y315M-2-132 KW |
|
C110-1.7 |
Air
|
110
|
1
|
20
|
1.2
|
7000
|
163.3
|
2955
|
JK2122-2-185 KW |
|
C120-1.35 |
Air
|
120
|
1
|
20
|
1.2
|
3500
|
88.8
|
2980
|
Y315S-2-110 KW |
|
C120-1.5 |
Air
|
120
|
1
|
20
|
1.2
|
5000
|
124.6
|
2955
|
JK2113-2-150 KW |
|
C120-1.7 |
Air
|
120
|
1
|
20
|
1.2
|
7000
|
165.5
|
2955
|
JK2122-2-185 KW |
|
C130-1.35 |
Air
|
130
|
1
|
20
|
1.2
|
3500
|
97.3
|
2980
|
Y315S-2-110 KW |
|
C130-1.5 |
Air
|
130
|
1
|
20
|
1.2
|
5000
|
135.7
|
2955
|
JK2113-2-150 KW |
|
C130-1.7 |
Air
|
130
|
1
|
20
|
1.2
|
7000
|
179.7
|
2980
|
Y315L2-2-200 KW |
|
C150-1.35 |
Air
|
150
|
1
|
20
|
1.2
|
3500
|
112.4
|
2980
|
Y315M-2-132 KW |
|
C150-1.5 |
Air
|
150
|
1
|
20
|
1.2
|
5000
|
157.8
|
2955
|
JK2122-2-185 KW |
|
C150-1.7 |
Air
|
150
|
1
|
20
|
1.2
|
7000
|
208.2
|
2960
|
JK-2-250 KW |
|
C150-1.8 |
Air
|
150
|
1
|
20
|
1.2
|
8000
|
254.6
|
2960
|
JK-2-275 KW |
|
C160-1.35 |
Air
|
160
|
1
|
20
|
1.2
|
3500
|
118.5
|
2980
|
Y315M-2-132 KW |
|
C160-1.5 |
Air
|
160
|
1
|
20
|
1.2
|
5000
|
165.6
|
2955
|
JK2122-2-185 KW |
|
C160-1.7 |
Air
|
160
|
1
|
20
|
1.2
|
7000
|
220.7
|
2960
|
JK-2-250 KW |
|
C160-1.8 |
Air
|
160
|
1
|
20
|
1.2
|
8000
|
268.1
|
2965
|
JK-2-290 KW |
|
C170-1.35 |
Air
|
170
|
1
|
20
|
1.2
|
3500
|
126.8
|
2955
|
JK2113-2-150 KW |
|
C170-1.5 |
Air
|
170
|
1
|
20
|
1.2
|
5000
|
177.5
|
2955
|
JK2122-2-185 KW |
|
C170-1.7 |
Air
|
170
|
1
|
20
|
1.2
|
7000
|
234.7
|
2960
|
JK-2-250 KW |
|
C170-1.8 |
Air
|
170
|
1
|
20
|
1.2
|
8000
|
271.0
|
2965
|
JK-2-290 KW |
|
C180-1.35 |
Air
|
180
|
1
|
20
|
1.2
|
3500
|
135.3
|
2955
|
JK2113-2-150 KW |
|
C180-1.5 |
Air
|
180
|
1
|
20
|
1.2
|
5000
|
185.4
|
2980
|
Y315L2-2-200 KW |
|
C180-1.7 |
Air
|
180
|
1
|
20
|
1.2
|
7000
|
247.6
|
2960
|
JK-2-275 KW |
|
C180-1.8 |
Air
|
180
|
1
|
20
|
1.2
|
8000
|
290.5
|
2965
|
JK-2-315 KW |
|
C190-1.35 |
Air
|
190
|
1
|
20
|
1.2
|
3500
|
141.6
|
2980
|
Y315L1-2-160 KW |
|
C190-1.5 |
Air
|
190
|
1
|
20
|
1.2
|
5000
|
202.5
|
2960
|
JK-2-220 KW |
|
C190-1.7 |
Air
|
190
|
1
|
20
|
1.2
|
7000
|
262.5
|
2965
|
JK-290KW |
|
C190-1.8 |
Air
|
190
|
1
|
20
|
1.2
|
8000
|
306.6
|
2965
|
JK-2-315KW |
|
C200-1.35 |
Air
|
200
|
1
|
20
|
1.2
|
3500
|
150.2
|
2955
|
JK2-122-2-185KW |
|
C200-1.5 |
Air
|
200
|
1
|
20
|
1.2
|
5000
|
228.2
|
2960
|
JK-2-250KW |
|
C200-1.7 |
Air
|
200
|
1
|
20
|
1.2
|
7000
|
276.6
|
2965
|
JK-2-315KW |
|
C220-1.35 |
Air
|
220
|
1
|
20
|
1.2
|
3500
|
164.4
|
2955
|
JK2-122-2-185KW |
|
C220-1.5 |
Air
|
220
|
1
|
20
|
1.2
|
5000
|
228.2
|
2960
|
JK-2-250KW |
|
C220-1.7 |
Air
|
220
|
1
|
20
|
1.2
|
7000
|
305.5
|
2965
|
JK-2-315KW |
|
C250-1.35 |
Air
|
250
|
1
|
20
|
1.2
|
3500
|
188.5
|
2960
|
JK-2-220KW |
|
C250-1.5 |
Air
|
250
|
1
|
20
|
1.2
|
5000
|
243.0
|
2965
|
JK-2-290KW |
|
C250-1.7 |
Air
|
250
|
1
|
20
|
1.2
|
7000
|
342.0
|
2965
|
JK-2-400 KW |
|
C250-1.8 |
Air
|
250
|
1
|
20
|
1.2
|
8000
|
398.5
|
2965
|
JK-2-440KW |
|
C260-1.82 |
Air
|
260
|
1
|
20
|
1.2
|
8200
|
412.2
|
2965
|
JK-2-440KW |
|
C270-1.75 |
Air
|
270
|
1
|
20
|
1.2
|
7500
|
395.3
|
2965
|
JK-2-440KW |
|
C300-1.35 |
Air
|
300
|
1
|
20
|
1.2
|
3500
|
222.2
|
2965
|
JK-2-250KW |
|
C300-1.5 |
Air
|
300
|
1
|
20
|
1.2
|
5000
|
309.7
|
2965
|
JK-2-350KW |
|
C300-1.6 |
Air
|
300
|
1
|
20
|
1.2
|
6000
|
386.0
|
2965
|
JK-2-440KW |
|
C300-1.7 |
Air
|
300
|
1
|
20
|
1.2
|
7000
|
402.6
|
2965
|
JK-2-440KW |
